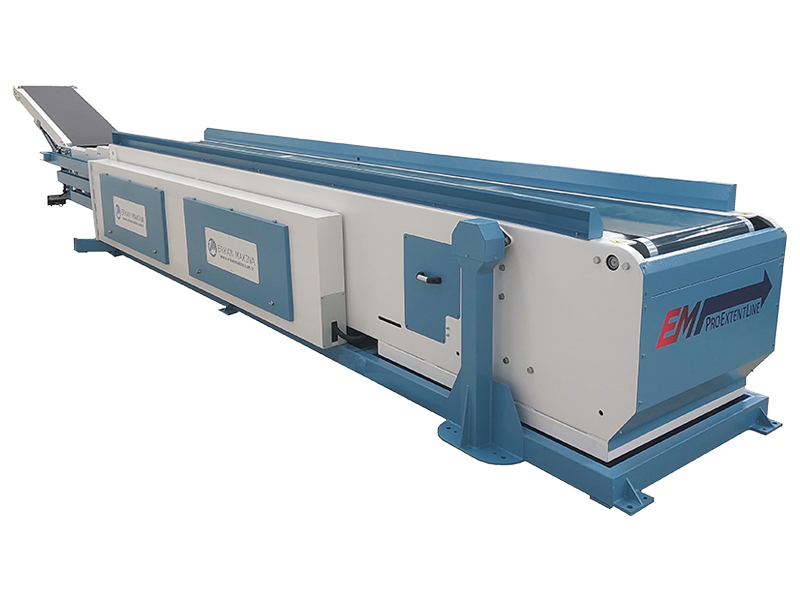

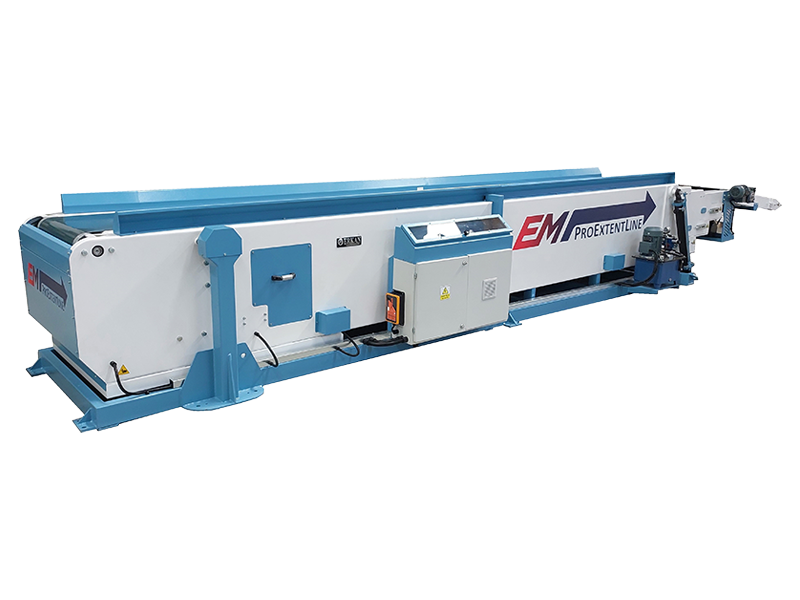

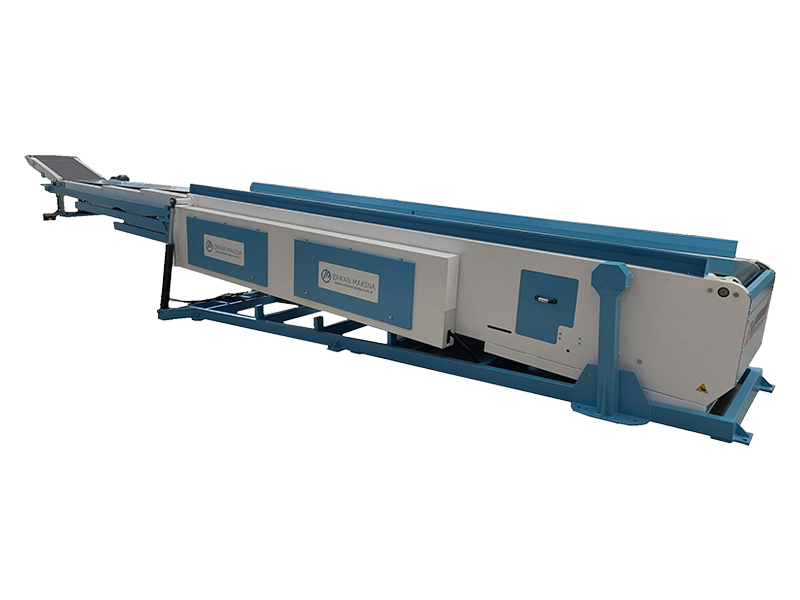

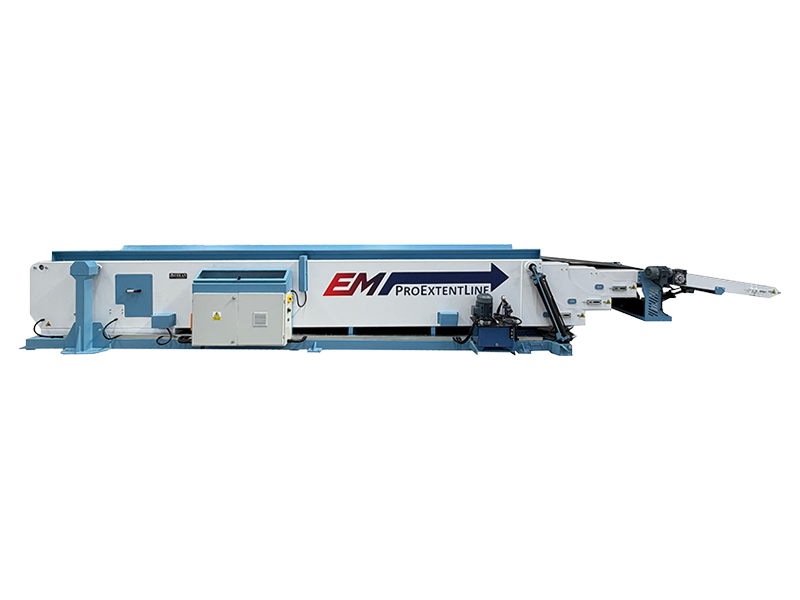

Telescopic Conveyor
Erkan telescopic conveyor systems are extendable and retractable conveyor solutions used to accelerate truck, trailer, and container loading and unloading operations. They reduce labor requirements and increase efficiency, especially in logistics, warehousing, and production facilities.
ADVANTAGES
– Saving time
– Reduction in labor costs
– Safer working environment
– High quality for long-lasting use
– Customer-specific design based on needs
– Ergonomic control panel
– High speed in loading/unloading
– Adjustable belt speed
AREAS OF USE
– For the transportation and storage of baggable products such as barley, wheat, corn, rice, flour, feed, semolina, bran, cement, salt, sugar, and cereals.
– For the transportation and storage of packable products such as pasta, oil, biscuits, chocolate, eggs, dry food, cleaning products, clothing, and textiles.
– In transportation and storage in the cargo, logistics, warehousing, packaging, production and distribution, e-commerce, port and terminal sectors
TECHNICAL INFORMATION
| Bandwidth | 650 mm |
| Band Type | High-quality, multi-layered PVC and textile tape (2.6 mm thickness) |
| Band Direction | Loading and unloading (two-way) |
| Belt Drive | Geared motor (3 kW) |
| Telescopic Motion Drive | Geared motor (1.5 kW) |
| Maximum Load Capacity | 50 kg / meter |
| Electrical Supply Type | 3 phase 380 V |
| Hydraulic Motion | High-quality hydraulic pumps and pistons allow fer easy adjustment of the convevor end height reaching a maximum height of 2900 mm and an indine of 7 degrees. |
| Limit and Boundary Movement Control | Geared motor (1.5 kW) |
| Oil Flow Rate | 21 lt/min. |
| Hydraulic Motor | 1. 1 kw 1400 rpm |
CONVEYOR FEATURES
| Fixed Length | Max Length | Stage | Model |
| 6.500 mm – 4.500 mm | 11.000 mm | 1 | EM-TB-1 |
| 6.500 mm – 8.500 mm | 15.000 mm | 2 | EM-TB-2 |
| 6.500 mm – 10.500 mm | 17.000 mm | 3 | EM-TB-3 |
| 7.000 mm – 9.000 mm | 16.000 mm | 2 | EM-TB-4 |
| 7.000 mm – 12.250 mm | 19.250 mm | 3 | EM-TB-5 |
| 8.000 mm – 15.000 mm | 23.000 mm | 3 | EM-TB-6 |
